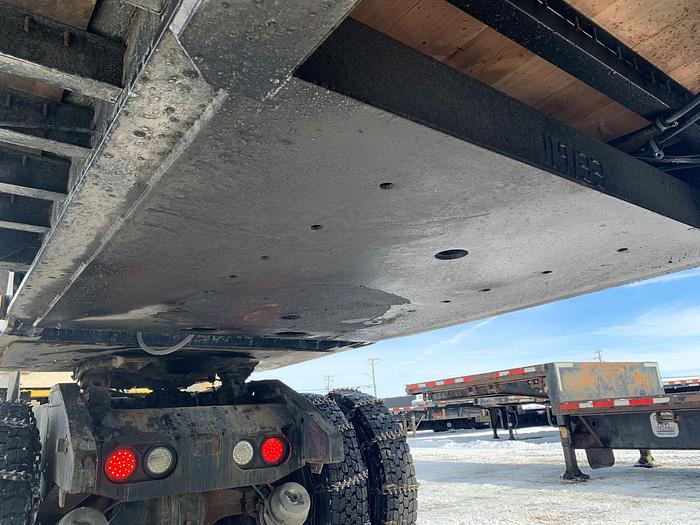

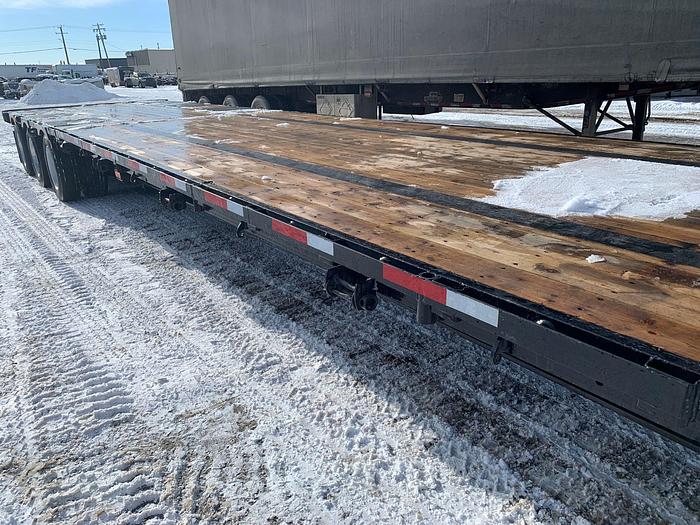

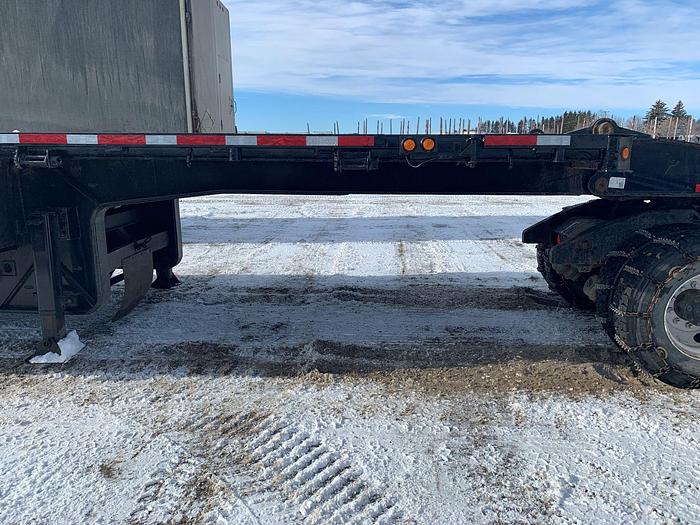

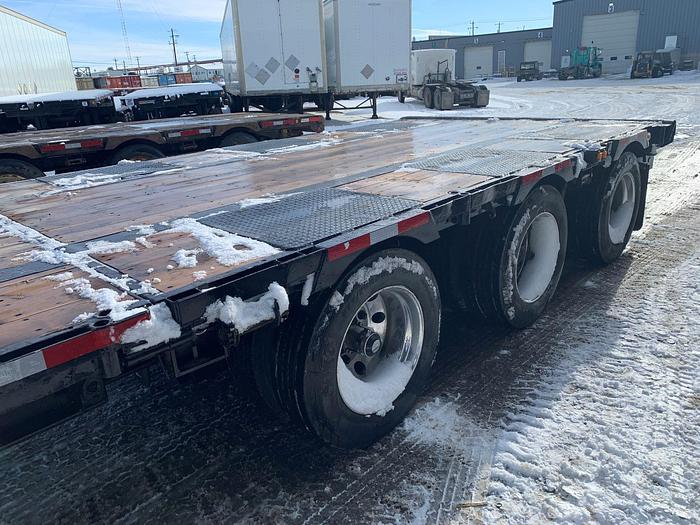

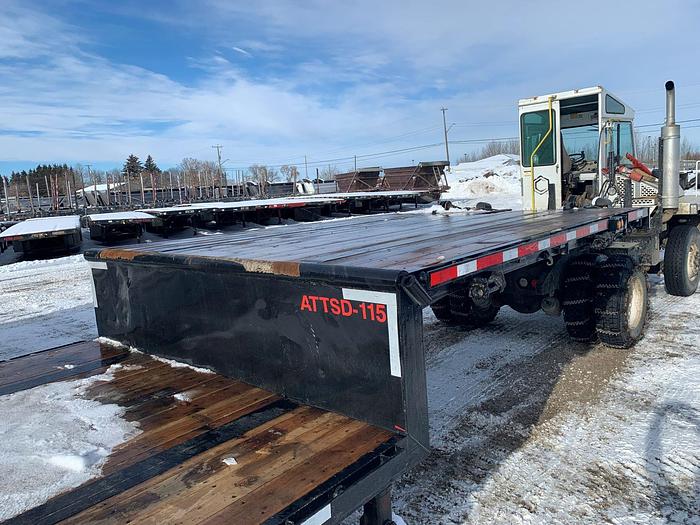

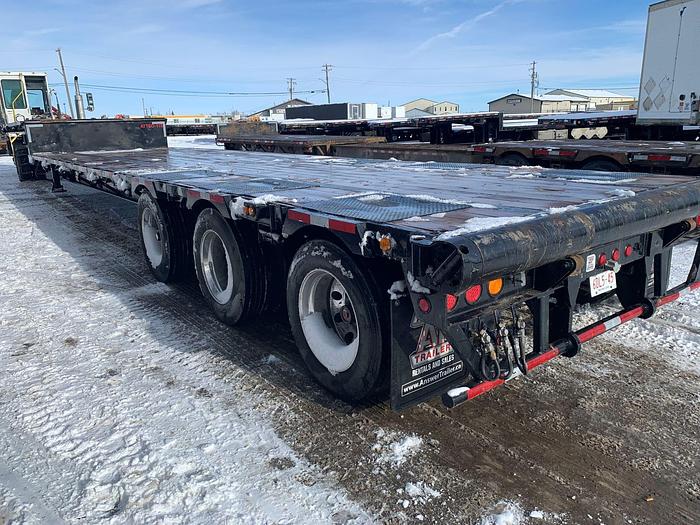

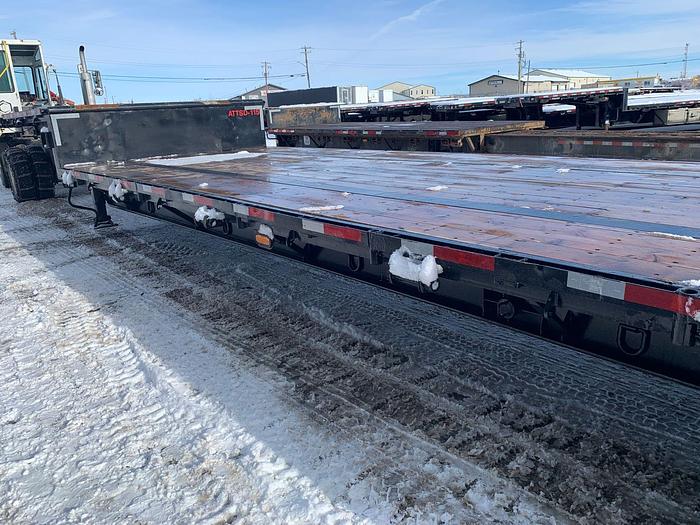

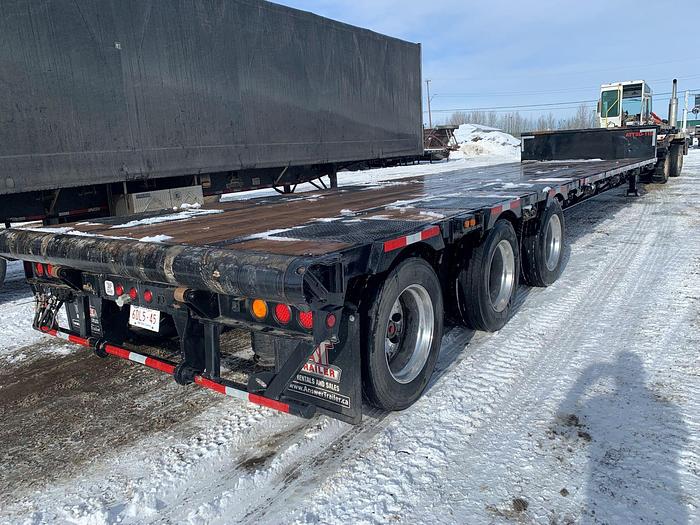

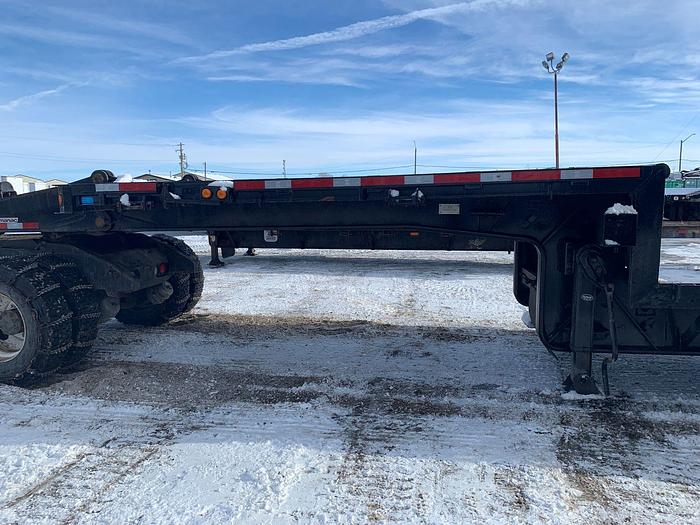

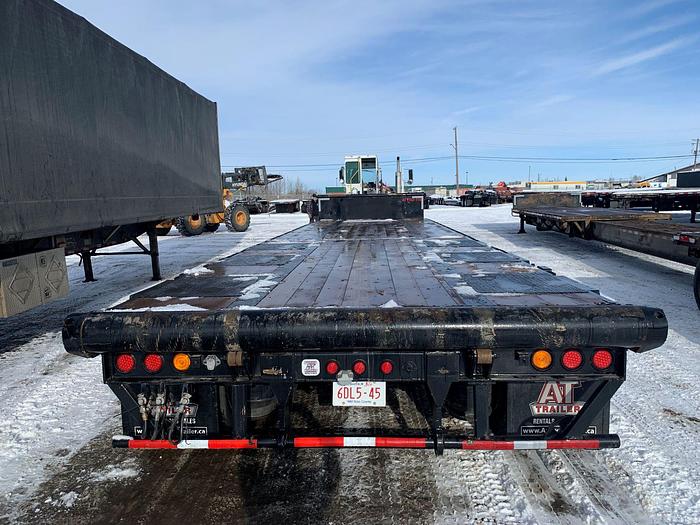

2009 Manac Tridem Step Deck Extendable/Trombone

• Overall trailer length closed 52’ / Open 69’
• Working lower deck length 39’
• Deck width 10’

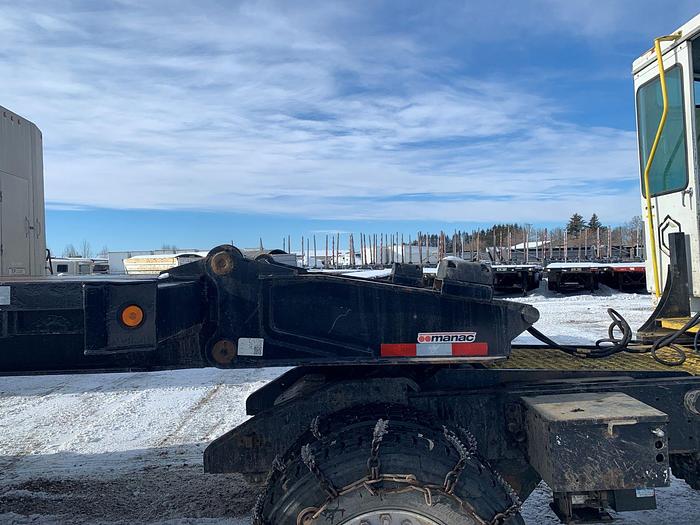

• Tri-drive neck, two pin settings, 18” and 48”

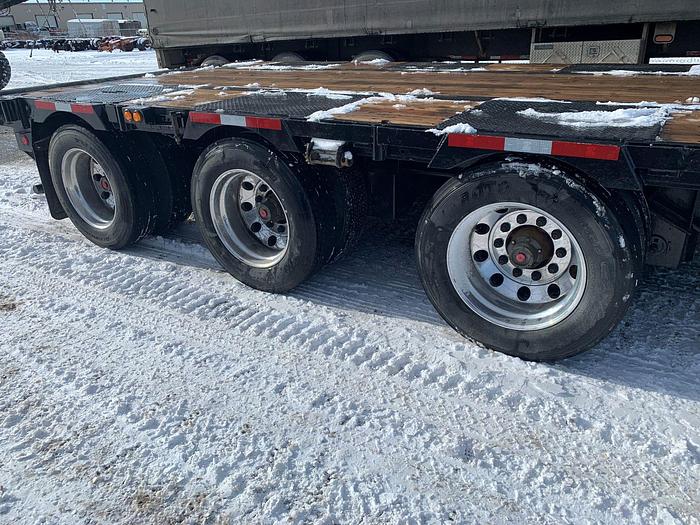

• 275/70R22.5 rubber @ 95% remaining, Steel inner / aluminum outer rims
• Drum brakes
• Oil bath hubs
• Hendrickson air ride suspension, 60” axle spread
• Holland 2-speed landing gear
• Steel 12”, crossmembers
• Fir, tongue & groove, in excellent condition
• New crossmembers, blast & paint, decking, tires, rims, wiring, hoses, pins & rollers

Options

• Live roll
• 15 mounted 3 bar winches, 8 roadside / 7 curbside,  opposite j-hooks
• Pin pockets, 14 per side
• Rub rails, 21 stake pockets per side
• Frame mounted D-rings, 4 per side
• Built-in rear strobe lights
• Swing-out wide load lights, 16”, 2 per side
• Plumbed for booster
• Neck extension to allow tandem jeep
• Can be made into a 9 axle combination

Additional Information

-          Front deck length 23’

-          Rear deck length 16’

-          Gap between deck when open 17’

-          Lower deck height 39”

-          Upper deck height 19”

-          Lower to upper deck 26”

-          Upper deck length 13’
